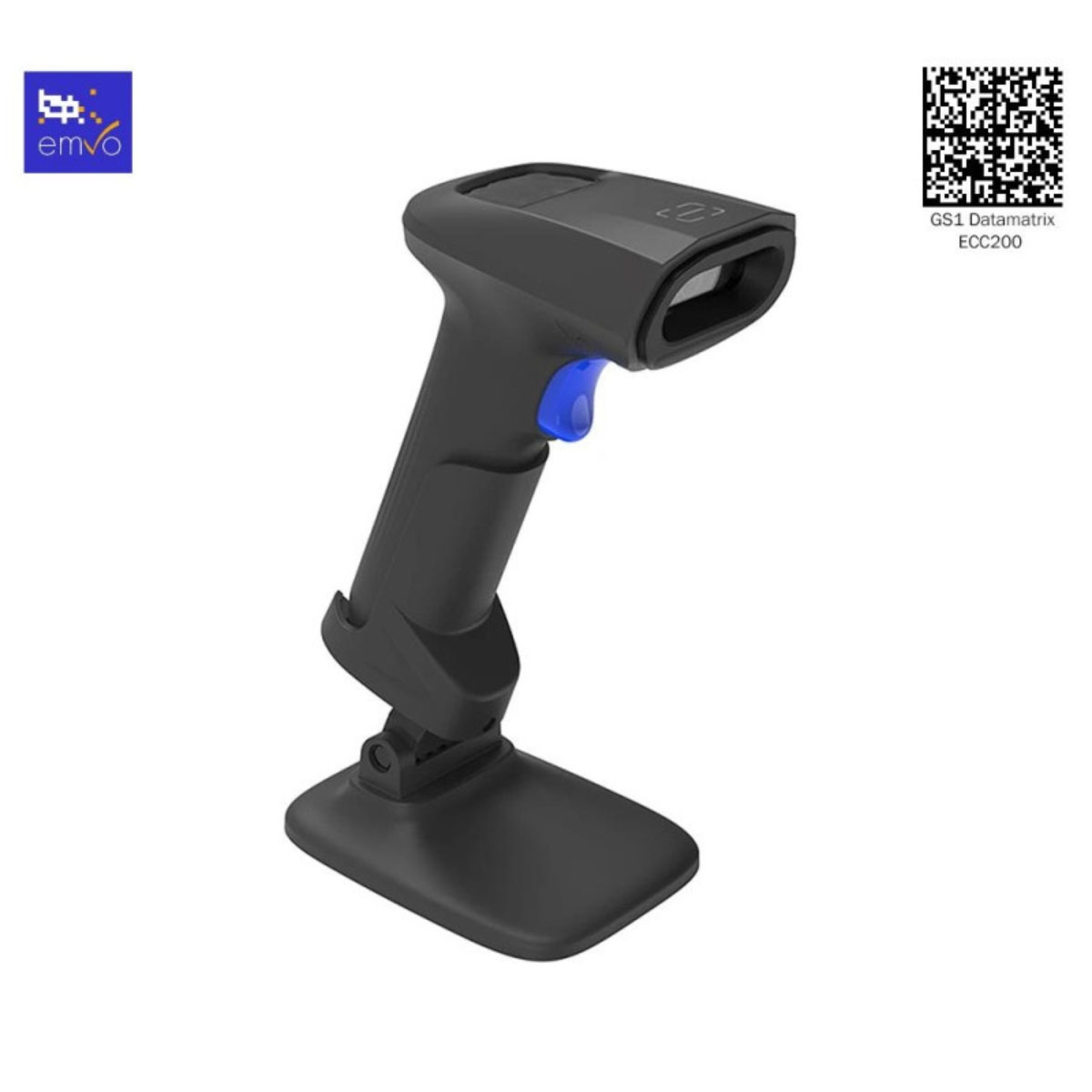

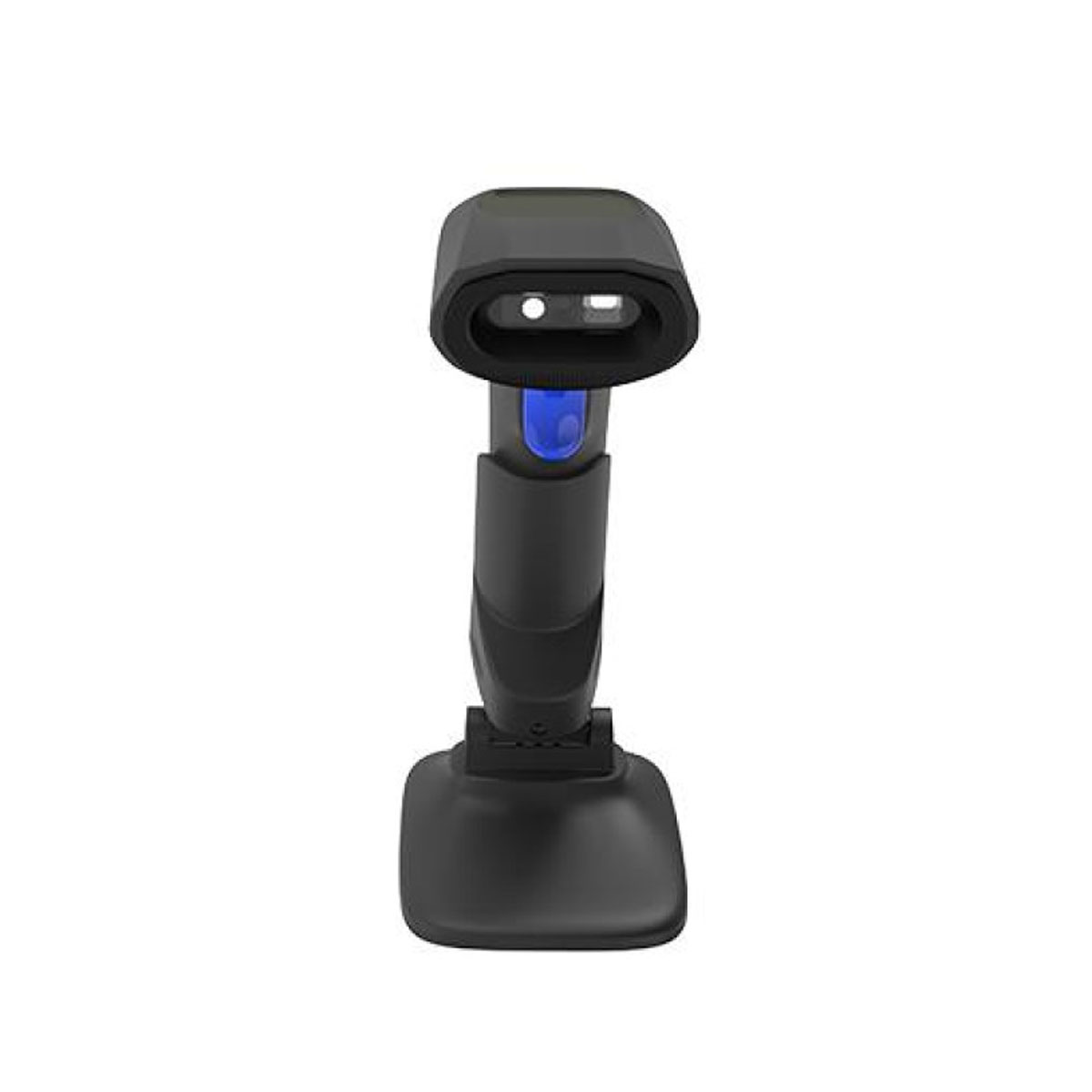

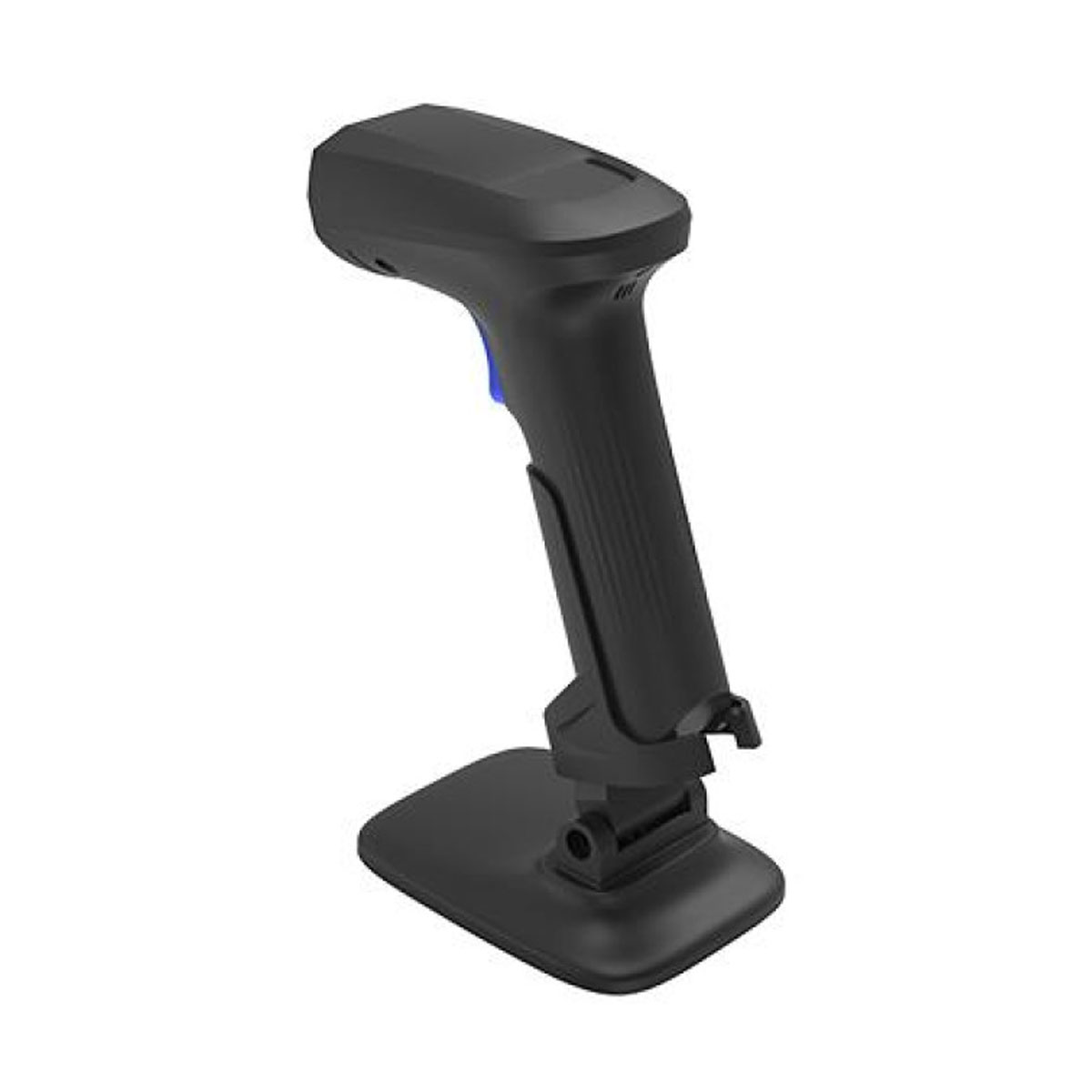

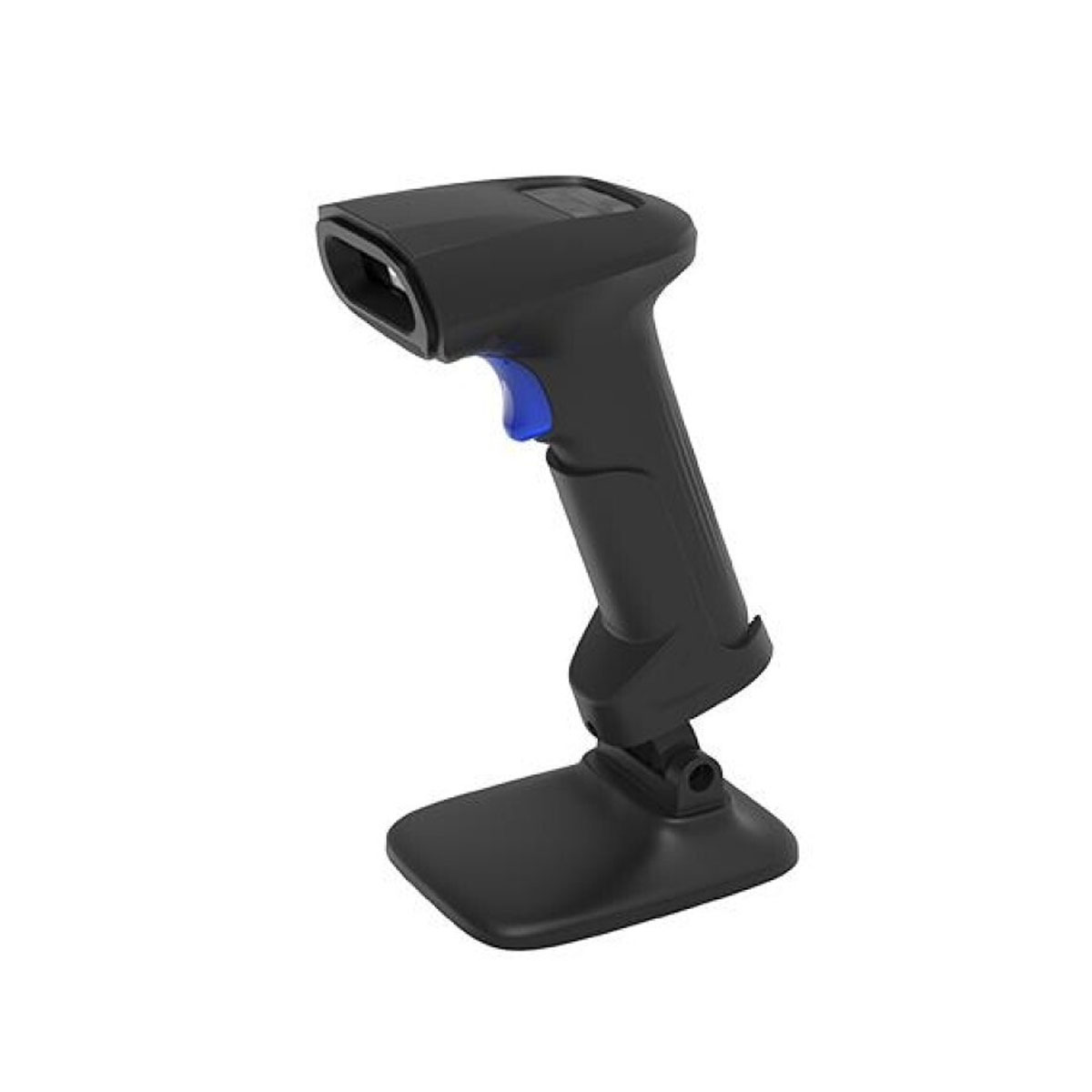

NG (2410) Handheld Wired Scanner with 2D and QR Barcode Reading Capability – Black

Description

With a superbly designed appearance, the NG BAR 2410 Wired Barcode scanner 2D, USB,

with base ensures long-term reliability and durability.

It offers impeccable performance with a very large depth of field, supporting excellent barcode scanning,

as well as accurate reading of even the smallest and thinnest barcodes.

It can read all types of 1D and 2D barcodes, both on paper and on screen, with speed and accuracy.

It supports different connection interfaces, such as USB HID, USB-VCOM and RS-232,

offering easy integration with various systems and work environments.

Technical specifications

CPU: 32bits ARM
Light source: White LED (Lighting), Red LED (aiming)
Scanning mode: Manual & Automatic & Continuous
Image sensor: CMOS
Resolution: 640×480 Pixels
Scanning speed: 60FPS
Scanning accuracy: ≥3mil (code 128 6 digits)
Depth of field: 60-300mm (13mil code39)
Printing contrast: ≥15%
Interface: USB-HID, USB-VCP, RS232

Decoding capability

1D: Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 128, GS1-128, UPC-A, UPC-E, EAN 8, EAN 13, ISBN, ISSN, GS1 DataBar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded, MSI, Standard 25, Plessey
2D: PDF417, Micro PDF417, QR Code, Data Matrix, Aztec Code, Hanxin code, Maxicode

Dimensions: LxWxH: 170.9×64.4×86.8 (mm)
Weight: 175g (scanner); 175g (base)
Material: ABS+PC
Voltage: DC5V±5%
Operating: 260mA
Standby: 140mA
Temperature (operation): -10°C-50°C
Humidity: 5% to 95% (non-condensing)
Temperature (storage): -20°C-60°C

Features

Connectivity: Wired
Type: Handheld Scanner
Reading Capability: Area Imager (2D)
Connection Type: USB
